CdE-A-5

CdE-A-5, M 179/105, 25x

CdE-A-5, M 179/105, 16x

CdE-A-5, M 179/105, 8x

object data

fabric description

archaeometry

sample no	M 179/105 representative sample for CdE-A-5
fabric type	CdE-A-5
supposed site of production	Circulo del Estrecho
sample taken	May 2013, by Babette Bechtold, Soprintendenza Beni Culturali e Ambientali di Palermo
	Context Data
site of discovery	Himera Necropoli W
interpretation of context	funerary
registration code of context	Necropoli W, W1107
registration code of object	W1107
chronology of context	500-409 BCE
	Object
ware	Transport Amphorae
object form	Amphora
object type	SG-11.2.1.0
chronology of object	Punic-Middle Punic 500-409 BC

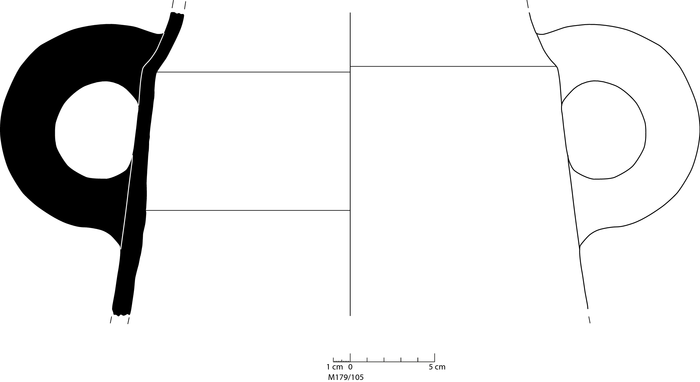

drawing
publication	Bechtold and Vassallo 2018, 148, cat. 259.

object data

fabric description

archaeometry

	Visual Examination of Fresh Break
visual examination of fresh break	colour light red and light brown, texture middle fine and compact, numerous small and few large inclusions: white, grey, red, voids
colour of fresh break	light red 2.5 YR 6/8, peripheral area reddish grey 5 YR 5/2
texture of fresh break	irregular
hardness	hard
	Observation Under the Binocular Stereoscope (all lengths in mm)
porosity	5%; void form: vughy, channel; void length: 0.04 (vughy), 0.06 (channel)-1.3 (vughy), 1.6 (channel)
inclusions	20%, length: <0.04-1.6
sorting	bimodal: poorly-sorted sand in well-sorted silt
	Inclusions (all lengths in mm)
black inclusions	frequent, rounded - subrounded, subangular, spherical - subspherical, elongate, black, grey, <0.04-0.8
calciumcarbonate	riddled with, very spherical - subspherical, elongate - very elongate, yellowish white, white, <0.04-1.6
carbonate pseudomorphoses	riddled with, very spherical - subspherical, subelongate, yellowish white, white, <0.04-0.4
foraminifera	infrequent, rounded, very spherical - subspherical, white, 0.2-0.4
mica	infrequent, spherical, elongate, angular, white, dark, <0.04-0.1
quartz	infrequent, well rounded - subrounded, subangular, very spherical - subspherical, elongate - subelongate, grey, clear, white, 0.06-1.0
reddish inclusions	infrequent, rounded - subrounded, very spherical - subspherical, elongate, red, reddish brown, <0.04-0.8

Cite this page as: FACEM - http://facem.at/cde-a-5

Distribution of fabric type
“CdE-A-5”

Himera Carthage

production discovery

Representative sample for
“CdE-A-5”

M 179/105

There are 1 more sample assigned to fabric type
“CdE-A-5”.
