IAIT-A-1

fabric description

object data

archaeometry

petrography

fabric type	IAIT-A-1
ware	Transport Amphorae
supposed site of production	Monte Iato / Iaitas
certainty of arguments	archaeometric: quite certain, archaeological: quite certain
visual excamination of fresh break	Dark pinkish clay, coarse and granular, with a good amount of visible inclusions of small and big size and of reddish or white-yellowish colour
colour of freshly broken section (munsell)	2.5 YR 6/6
texture of freshly broken surface	granular
hardness	very hard
porosity	void form: channel; vughy; void length: 0.08-1.31 (channel lenght)
inclusions	length: 0.04-1.59
sorting	well sorted sand in different compositions
	Inclusions
quartz	infrequent, well rounded; rounded, very spherical; subspherical, whitish or transparent, 0.08-0.16-40
calciumcarbonate	frequent/infrequent, well rounded, very spherical, white, 0.04-08-0.40
carbonate pseudomorphoses	frequent, well rounded; rounded, very spherical, white/yellowish, 0.04-0.40
black iron oxide concretions	singular, well rounded, elongate, brownish black, 0.24
red iron oxide concretions	sporadic, subangular, spherical, dark red, 0.08-0.32
reddish inclusions	frequent, subrounded; subangular, spherical; subspherical, red, 0.04-08-0.40
more inclusions2	frequent, rounded, very spherical, orangish/pinkish, 0.08-0.56-60
more inclusions3	frequent, well rounded; rounded, very spherical; linear, yellow /light yellow, 0.16-0.83-1.59

fabric description

object data

archaeometry

petrography

vessel form type	Amphora Western Greek, Gassner rim 3-4
fragmentation	rim
dimensions	height: 4cm
surface description	slipped traces of pink slip inside/outside 7.5 YR 8/3
chronology of object	Greek 510-450
publication	Entella II (forthcoming)

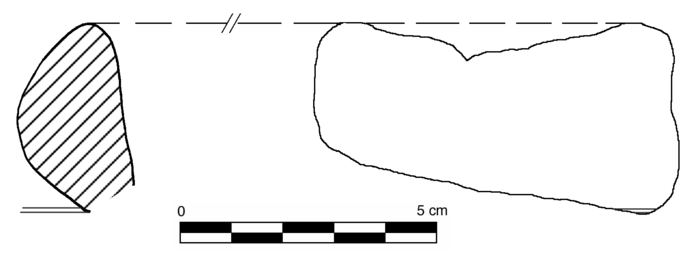

drawing
	Context Data
site of discovery	Entella Survey
registration code of context	UT 236
registration code of object	Inv. 2002

fabric description

object data

archaeometry

petrography

applied method for sample analysis	thin section
analysis author	Montana/Randazzo
sample taken	February 2019, by Alessandro Corretti, Scuola Normale Superiore di Pisa
sample no	M 187/47 representative sample for IAIT-A-1
status of sample	whole sample available

fabric description

object data

archaeometry

petrography

sample number	M 187/47
inventory number	Inv. 2002 UT 236
analysis author	Giuseppe Montana - Luciana Randazzo
email	giuseppe.montana@unipa.it; luciana.randazzo@unical.it
institution	University of Palermo - Dipartimento di Scienze della Terra e del Mare (DiSTeM); University of Calabria Dipartimento di Biologia, Ecologia e Scienze della Terra (DiBEST):
	Inclusions Microstructure
distribution	moderately homogeneous
packing	high (20-30%)
size	prevalent: very fine (0.04-0.1mm), fine (0.1-0.2mm) common: medium (0.2-0.5mm) sporadic: coarse (0.5-2mm)
roundness	angular
sorting	scarce-serial
maximum grain size	0.8
	Mineral Inclusions
common	Monocrystalline Quartz
sporadic	Polycrystalline Quartz, Muscovite
	Rock Fragments
rare	Sedimentary (Sandstone)
	Other Compositional & Textural Features
prevalent	Microfossils (Benthic Foraminifera), Micritic Clots
quartz grain prevailing roundness	angular
	Coating / Slipping
thickness
conservation status
	Texture
homogenity	moderately homogeneous patchy: frequent
optical activity	inactive
color
degree of sintering	well sintered
	Porosity
abundance of voids/pores	medium (10-30%)
orientation	none
prevalent	tiny (<0.01mm), small (0.01-0.1mm), medium (0.1-1mm), large (>1mm), irregular, rounded, cast
	Composition
clay composition	ca-rich
	Interpretation
estimated firing temperature	well fired
modelling of raw clay	use of wheel
refinement of raw clay	acceptable
refinement of temper	sieved natural sand
