CdE-A-3

CdE-A-3, M 179/108, 25x

CdE-A-3, M 179/108, 16x

CdE-A-3, M 179/108, 8x

object data

fabric description

archaeometry

sample no	M 179/108
fabric type	CdE-A-3
supposed site of production	Circulo del Estrecho
sample taken	May 2013, by Babette Bechtold, Soprintendenza Beni Culturali e Ambientali di Palermo
	Context Data
site of discovery	Himera Necropoli E
interpretation of context	funerary
registration code of context	Necropoli E, RO329
registration code of object	RO329
chronology of context	650-550 BCE
	Object
ware	Transport Amphorae
object form	Amphora
object type	Ramón T-10.1.2.1
chronology of object	Punic-Early Punic 650-550 BC
fragmentation	wall

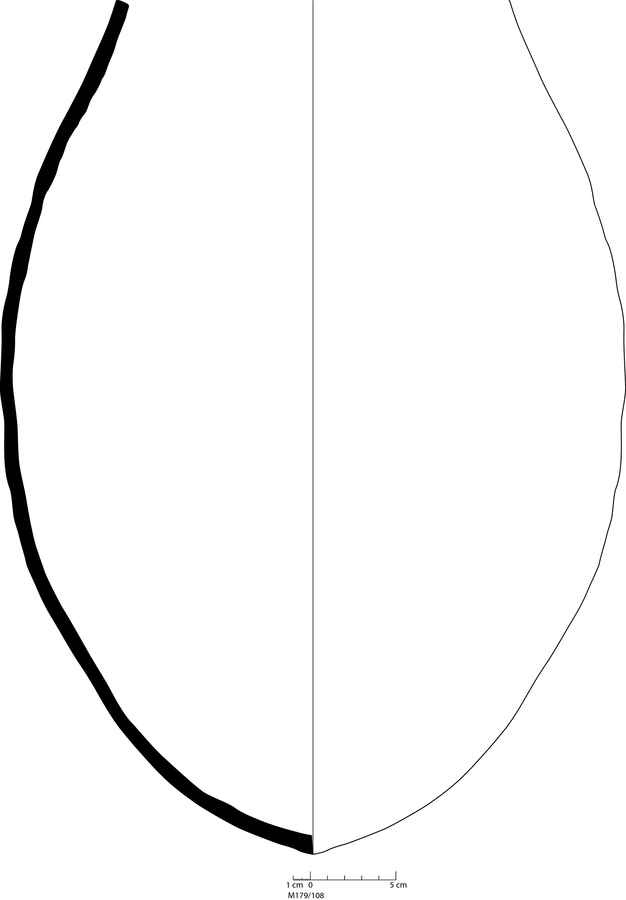

drawing
publication	Bechtold and Vassallo 2018, 146, cat. 245.

	Visual Examination of Fresh Break
visual examination of fresh break	colour light red, texture fine and compact, frequent small to large inclusions: grey, black, white, red
colour of fresh break	red 2.5 YR 5/8
texture of fresh break	irregular
hardness	hard
	Observation Under the Binocular Stereoscope (all lengths in mm)
porosity	5%; void form: vughy, chambers, channel; void length: 0.04-4.8
inclusions	15%, length: <0.04-1.1
sorting	bimodal: poorly-sorted sand in well-sorted silt
	Inclusions (all lengths in mm)
black inclusions	frequent, well rounded - subrounded, very spherical - subspherical, elongate - subelongate, black, grey, <0.04-1-0
calciumcarbonate	frequent, well rounded - angular, very spherical - subspherical, elongate, yellowish white, white, <0.04-0.3
carbonate pseudomorphoses	singular, very spherical, subelongate, yellowish white, white, 0.04-0.3
mica	frequent, sperical, elongate, angular, white, dark, <0.04-0.08
quartz	frequent, well rounded - rounded, subangular - angular, very spherical - subspherical, subelongate, grey, white, clear, 0.04-1.1
reddish inclusions	frequent, rounded - subrounded, very spherical - subspherical, elongate, red, reddish brown, <0.04-0.5

applied method for sample analysis	thin section, chemical analysis
analysis author	Giuseppe Montana
publication (of analysis)	Montana and Randazzo 2018, 70, tab. 4; Montana et al. 2006, imp. V.

Cite this page as: FACEM - http://facem.at/m-179-108

Distribution of fabric type
“CdE-A-3”

Himera Pantelleria Himera

production discovery

Representative sample for
“CdE-A-3”

M 179/107

There are 2 more samples assigned to fabric type
“CdE-A-3”.
