MOT-A-1

MOT-A-1, M 179/34, scale bar 0.5mm

MOT-A-1, M 179/34, 25x

MOT-A-1, M 179/34, 16x

MOT-A-1, M 179/34, 8x

object data

fabric description

archaeometry

petrography

sample no	M 179/34
fabric type	MOT-A-1
supposed site of production	Mozia / Motya
fabric previously published as	W-CENT-SARD-A-1
sample taken	May 2013, by Babette Bechtold, Soprintendenza BB.CC.AA Trapani
	Context Data
site of discovery	Himera Necropoli W
interpretation of context	funerary
registration code of context	W6515
registration code of object	W6515
chronology of context	510-470 BCE
	Object
ware	Transport Amphorae
object form	Amphora
object type	Ramon T-1.4.2.2
chronology of object	Punic-Middle Punic 510-470 BC
fragmentation	rim - handle - body
dimensions	diameter: 11cm (rim)

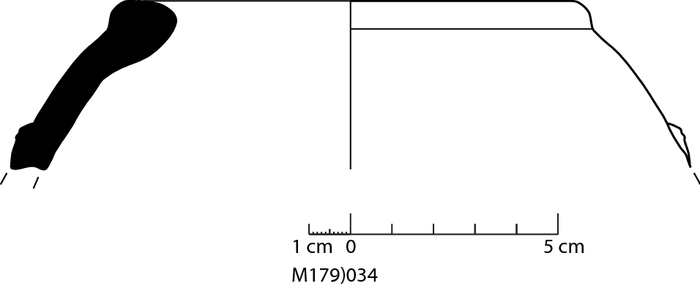

drawing
publication	Bechtold and Vassallo 2018, 113, cat. 50.

	Visual Examination of Fresh Break
visual examination of fresh break	colour red, core dark grey, texture coarse, numerous small to large inclusions: white, grey, red, voids
colour of fresh break	red 10 R 5/8, core dark reddish grey 10 R 4/1
texture of fresh break	granular
hardness	hard
	Observation Under the Binocular Stereoscope (all lengths in mm)
porosity	10%; void form: channel, vughy; void length: 0.04-0.9 (channel), 1.6 (vughy)
inclusions	15%, length: <0.04-1.1
sorting	bimodal: poorly-sorted sand in well-sorted silt
	Inclusions (all lengths in mm)
black inclusions	singular, rounded, spherical, elongate, black, 0.04-0.16
calciumcarbonate	very frequent, well rounded - subrounded, very spherical - subspherrical, yellowish white, white, 0.04-0.32
carbonate pseudomorphoses	frequent, rounded - subrounded, spherical - subspherical, subelongate - very elongate, yellowish white, white, 0.12-1.1
mica	infrequent, spherical, elongate, angular, white, <0.04-0.06
quartz	very frequent, well rounded - rounded, subangular, very spherical - subspherical, grey, white, clear, 0.06-0.88
reddish inclusions	singular, well rounded, very spherical - subspherical, reddish brown;reddish brown, 0.12-0.24

applied method for sample analysis	thin section, chemical analysis
analysis author	Giuseppe Montana
publication (of analysis)	Montana and Randazzo 2018, 70, tab. 4.

object data

fabric description

archaeometry

petrography

sample number	M 179/34
inventory number	Necropolis West, W 6515
name of author	Giuseppe Montana - Luciana Randazzo
institution of author	Department of Earth and Marine Sciences (DiSTeM) - University of Palermo
contact information of author	giuseppe.montana@unipa.it; luciana.randazzo@unipa.it
	Temper Grains
	Microstructure
areal distribution	moderately homogeneous
packing (% area)	high (20-30%)
size/granulometry (mm)	prevalent: very fine (0.04-0.1mm), very coarse (>2mm)
maximum grain size (mm)	1.2
sorting	scarce-serial
roundness	sub-angular
	Composition
minerals	prevalent: Monocrystalline Quartz common: Polycrystalline Quartz, Orthoclase (alteration) sporadic: Microcline, Plagioclase rare: Pyroxenes
rock fragments	sporadic: Sedimentary (Siltstone, Sandstone)
quartz grains	sub-angular
	Groundmass
	Texture
texture	not homogeneous (patchy) patchy: sporadic
optical activity	inactive
color (plane polarized light)	brownish
degree of sintering	well sintered
	Porosity
voids/pores abundance (area)	medium (10-30%)
voids/pores size	prevalent: medium (0.1-1mm)
voids/pores orientation	full
voids/pores shape	prevalent: channels
	Clay Composition
clay composition	ca-poor
	Estimations from Microscopy/Interpretation
	Interpretation
firing temperature	well fired
refinement of raw clay	bad
refinement of temper/clasts	sieved natural sand
modelling technique/fabrication	use of wheel

Cite this page as: FACEM - http://facem.at/m-179-34

Distribution of fabric type
“MOT-A-1”

Himera Pantelleria Selinunte / Selinus Selinunte / Selinus Himera Himera Himera Himera Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya Mozia / Motya

production discovery

Representative sample for
“MOT-A-1”

M 179/8

There are 7 more samples assigned to fabric type
“MOT-A-1”.
